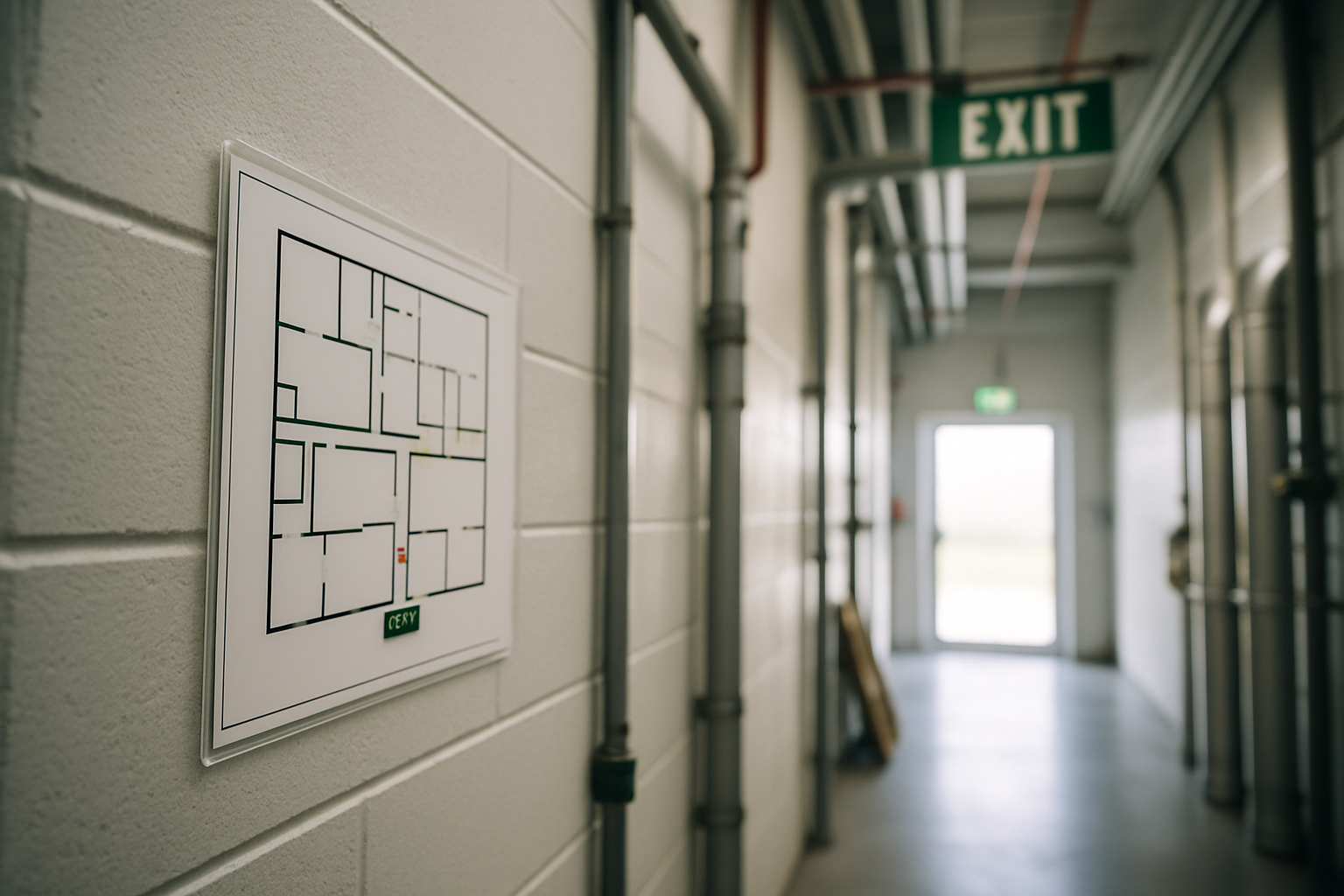

Mapping Your Escape: OSHA and NFPA Standards Behind Evacuation Maps

Frequently Asked Questions

Does OSHA require a specific evacuation map format?

No. The post says OSHA does not require one universal map template, but posted maps should clearly support your emergency action plan and the actual exit routes employees use.

What should be shown on an evacuation map at an industrial facility?

Useful maps typically show a You Are Here marker, primary and alternate routes, exit doors or stairwells, exterior discharge points, and assembly areas if your plan uses them. Depending on your response plan, they may also include items like pull stations, extinguishers, eyewash stations, spill kits, or AEDs.

Which OSHA standards matter most for evacuation maps?

For general industry, the post identifies 29 CFR 1910.38 as the core emergency action plan rule, with 1910.36 and 1910.37 shaping exit route design, marking, and maintenance. It also notes 1910 Subpart E more broadly, and for construction it points to 1926.35 and 1926.34.

How do NFPA standards apply to evacuation maps?

The post says NFPA standards help define best practice even when they are not direct federal OSHA requirements by default. It highlights NFPA 101 for egress and life safety planning and NFPA 170 for consistent symbols that make maps easier to understand.

How often should evacuation maps be reviewed or updated?

The post recommends reviewing maps in the field after remodels, line moves, racking changes, process changes, or occupancy changes. It also says drills should be used to confirm employees can actually follow the routes under pressure.
